NanoMix-EXT

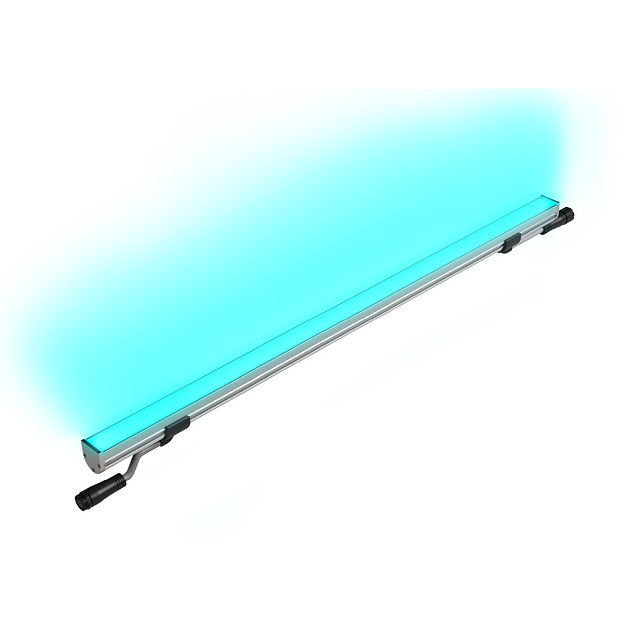

WebProductPhoto_NanoMixExt.pngNanoMix-EXT
Triple Diode DMX Controlled Line Voltage Small Profile Linear LED Fixture
Even color washing, also at short distances. 4 Channel allowing use of white or single color additional LED. Compact, variable light fixture for dry and wet location use. Fixture comes in 12”, 18”, 24”, 48” lengths. Many options and accessories to suit a range of projects. Integrates with Boca Wireless DMX Router system for ease of installation and control. Operates with any standard 512 DMX controller. The housing is an anodized aluminum with tempered glass lens for enhanced durability in demanding installations. Contact Boca Flasher for tips with custom installations. Total linear feet per power feed: 40 ft. @ 120V per port. Knife Edge Cove compatible.
Key Features
Key Features
- Ideal for knife-edge cove applications
- Dry and wet location use
- Anodized aluminum fixture with tempered glass
Even color washing, also at short distances. 4 Channel allowing use of white or single color additional LED. Compact, variable light fixture for dry and wet location use. Fixture comes in 12”, 18”, 24”, 48” lengths. Many options and accessories to suit a range of projects. Integrates with Boca Wireless DMX Router system for ease of installation and control. Operates with any standard 512 DMX controller. The housing is an anodized aluminum with tempered glass lens for enhanced durability in demanding installations. Contact Boca Flasher for tips with custom installations. Total linear feet per power feed: 40 ft. @ 120V per port. Knife Edge Cove compatible.
Key Features
Key Features
- Ideal for knife-edge cove applications
- Dry and wet location use
- Anodized aluminum fixture with tempered glass
The NanoMix-EXT is ideal for these applications:
- Color Changing
- Wet location
- Cornice
- Façade
- Wall Washing/Grazing
Resources
The NanoMix-EXT is ideal for these applications:
- Color Changing
- Wet location
- Cornice
- Façade
- Wall Washing/Grazing
What fixture lengths are available?
Fixture comes in 12”, 18”, 24”, 48” lengths.
Fixture comes in 12”, 18”, 24”, 48” lengths.
What control protocol is required?
Operates with any standard 512 DMX controller.
- Specifier / Lighting Designer
- High 90 CRI ensures exceptional color rendering and architectural vibrancy.
- Precise 15x40 and 120 beam options provide tailored light distribution.
- Four-channel RGBW mixing enables a vast range of dynamic color possibilities.
- Architect
- Ultra-slim profile allows for seamless concealment within knife-edge cove details.
- Premium anodized aluminum housing with tempered glass enhances architectural aesthetics.
- Modular lengths from 12 to 48 inches fit diverse geometric requirements.
- Engineer
- Line voltage operation at 120V or 277V streamlines electrical design.
- DMX 512 control ensures reliable integration with sophisticated building systems.
- ETL and UL listings confirm compliance with rigorous safety standards.
- Installer / Contractor
- Hinge and fixed mounting options simplify positioning in tight spaces.
- Rated for wet locations, allowing versatile use across various project zones.
- Extended 40-foot runs per power feed significantly reduce installation labor.
- Facility Manager / Owner
- Low 6W power consumption lowers operational expenses and energy footprints.
- A five-year warranty ensures reliable performance and reduced replacement costs.
- BABA compliance simplifies procurement for government and infrastructure projects.
Beam Angle
- 15x40
- 120
CCT
- 2000K
- 2400K
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
- 6500K
CRI
- 90
Color / Finish
- Clear Anodized Aluminum
Dimensions
- L: 12 In. W: 1.08 In. H: 2.08 In.
- L: 24 In. W: 1.08 In. H: 2.08 In.
- L: 36 In. W: 1.08 In. H: 2.08 In.
- L: 48 In. W: 1.08 In. H: 2.08 In.
Dimming Protocol
- DMX
Dynamic LED Color
- RGBW
Lamp Source
- LED
Listings
- ETL
- UL
Materials
- Aluminum
Mounting
- Fixed
- Hinge
Ratings & Compliance
- ANSI C136.31
- Build America Buy America (BABA)
- Buy American Act (BAA)
- IP50
- IP67
- JA8
- Made in America
- RoHS
- Title 24
- Vandal Resistant
Static LED Color
- Amber
- Blue
- Green
- Red
- White
Voltage
- 277 V
- 90-120 V
Warranty
- 5 yr
Watts
- 6
Additional Details
- Specifier / Lighting Designer
- High 90 CRI ensures exceptional color rendering and architectural vibrancy.
- Precise 15x40 and 120 beam options provide tailored light distribution.
- Four-channel RGBW mixing enables a vast range of dynamic color possibilities.
- Architect
- Ultra-slim profile allows for seamless concealment within knife-edge cove details.
- Premium anodized aluminum housing with tempered glass enhances architectural aesthetics.
- Modular lengths from 12 to 48 inches fit diverse geometric requirements.
- Engineer
- Line voltage operation at 120V or 277V streamlines electrical design.
- DMX 512 control ensures reliable integration with sophisticated building systems.
- ETL and UL listings confirm compliance with rigorous safety standards.
- Installer / Contractor
- Hinge and fixed mounting options simplify positioning in tight spaces.
- Rated for wet locations, allowing versatile use across various project zones.
- Extended 40-foot runs per power feed significantly reduce installation labor.
- Facility Manager / Owner
- Low 6W power consumption lowers operational expenses and energy footprints.
- A five-year warranty ensures reliable performance and reduced replacement costs.
- BABA compliance simplifies procurement for government and infrastructure projects.
What fixture lengths are available?
Fixture comes in 12”, 18”, 24”, 48” lengths.
Fixture comes in 12”, 18”, 24”, 48” lengths.
What control protocol is required?
Operates with any standard 512 DMX controller.
