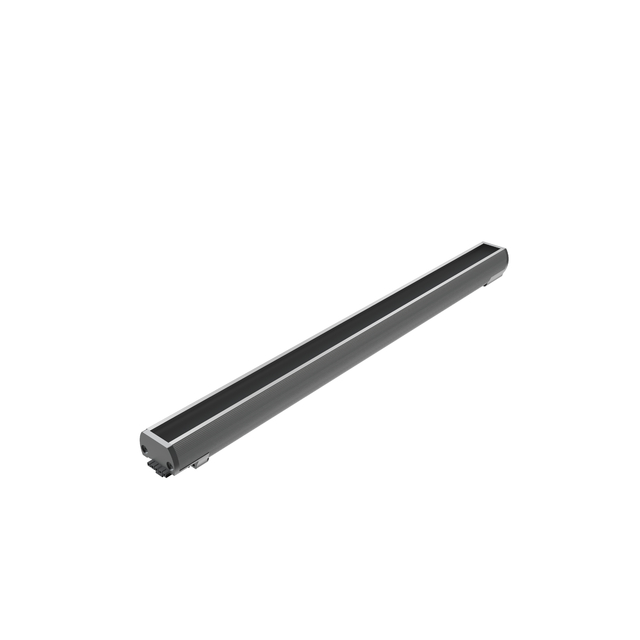

NanoLume-QS
Boca__NANOLUME QUICKSHIP_white.jpgNanoLume-QS
Micro Profile LED Task and Cove Fixture QuickShip
Boca Lighting and Controls’s NanoLume has a streamline profile. It is a line voltage fixture perfect for Cove Lighting or Task Lighting areas where space, budget and energy are a factor. Boca’s CleanDim® technology ensures even dimming from 0-100%. The NanoLume can be fabricated with a range of color temperature choices, affording a multitude of options. The housing is a high temperature ABS plastic with a durable white or black finish, making it temperature and abrasion resistant.
Key Features
Key Features
- Perfect for cove lighting projects
- Quick-ship configurations
- Six color temperature choices
Boca Lighting and Controls’s NanoLume has a streamline profile. It is a line voltage fixture perfect for Cove Lighting or Task Lighting areas where space, budget and energy are a factor. Boca’s CleanDim® technology ensures even dimming from 0-100%. The NanoLume can be fabricated with a range of color temperature choices, affording a multitude of options. The housing is a high temperature ABS plastic with a durable white or black finish, making it temperature and abrasion resistant.
Key Features
Key Features
- Perfect for cove lighting projects
- Quick-ship configurations
- Six color temperature choices
The NanoLume-QS is ideal for these applications:
- Cove
- Millwork
- Wall Washing/Grazing
- Under-cabinet
- Task
Resources
The NanoLume-QS is ideal for these applications:
- Cove
- Millwork
- Wall Washing/Grazing
- Under-cabinet
- Task
What applications is this best for?
It’s commonly used for millwork, reveals, toe-kicks, coves, and tight architectural details needing clean linear light.
What CCT levels are available?
2000k, 2400k, 2700k, 3000k, 3500k, and 4000k
It’s commonly used for millwork, reveals, toe-kicks, coves, and tight architectural details needing clean linear light.
What CCT levels are available?
2000k, 2400k, 2700k, 3000k, 3500k, and 4000k
- Specifier / Lighting Designer
- High 90 CRI for superior color rendering in high-end architectural applications.
- Choose from six CCT options ranging from 2000K to 4000K.
- Versatile 15x40 and 120-degree optics for precise beam control in coves.
- Architect
- Streamlined micro profile allows for concealment in shallow architectural reveals.
- High-temperature ABS housing available in durable black or white finishes.
- Minimalist design integrates seamlessly with millwork and tight interior details.
- Engineer
- Direct line voltage operation removes the need for remote power supplies.
- Compatible with 0-10V, DALI, DMX, and forward/reverse phase dimming protocols.
- Robust electrical design meeting BABA and JA8 Title 24 compliance standards.
- Installer / Contractor
- Swivel and hinge mounting options facilitate rapid and flexible field installation.
- QuickShip program availability ensures fixtures arrive on-site when needed most.
- Simplified installation with direct line voltage wiring and no external drivers.
- Facility Manager / Owner
- Energy-efficient performance reduces building operating costs and environmental impact.
- Five-year manufacturer warranty ensures long-term reliability and low maintenance requirements.
- CleanDim technology maintains consistent light quality and extends LED service life.
Beam Angle
- 15x40
- 120
CCT
- 2000K
- 2400K
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 90
Color / Finish
- Black
- White
Dimensions
- L: 36 In.
- L: 42 In.
- L: 30 In.
- L: 48 In.
- L: 60 In.
- L: 66 In.
- L: 24 In.
- L: 72 In.
- L: 54 In.
- L: 12 In. W: 1.03 In. H: 0.82 In.
- L: 18 In.
Dimming Protocol
- 0-10 V
- DALI
- DMX
- Forward Phase
- Reverse Phase
Dimming Range
- 0-100%
Lamp Source
- LED
Listings
- cULus
Lumens
- 432
- 510
- 560
- 588
- 618
- 636
Materials
- ABS
- Plastic
Mounting
- Hinge
- Swivel
Ratings & Compliance
- Build America Buy America (BABA)
- Buy American Act (BAA)
- IP50
- JA8
- Made in America
- RoHS
- Title 24
Special Programs
- Quick Ship
Static LED Color
- White
Voltage
- 230-277 V
- 90-120 V
Warranty
- 5 yr
Watts
- 3
- 6
Additional Details
- Specifier / Lighting Designer
- High 90 CRI for superior color rendering in high-end architectural applications.
- Choose from six CCT options ranging from 2000K to 4000K.
- Versatile 15x40 and 120-degree optics for precise beam control in coves.
- Architect
- Streamlined micro profile allows for concealment in shallow architectural reveals.
- High-temperature ABS housing available in durable black or white finishes.
- Minimalist design integrates seamlessly with millwork and tight interior details.
- Engineer
- Direct line voltage operation removes the need for remote power supplies.
- Compatible with 0-10V, DALI, DMX, and forward/reverse phase dimming protocols.
- Robust electrical design meeting BABA and JA8 Title 24 compliance standards.
- Installer / Contractor
- Swivel and hinge mounting options facilitate rapid and flexible field installation.
- QuickShip program availability ensures fixtures arrive on-site when needed most.
- Simplified installation with direct line voltage wiring and no external drivers.
- Facility Manager / Owner
- Energy-efficient performance reduces building operating costs and environmental impact.
- Five-year manufacturer warranty ensures long-term reliability and low maintenance requirements.
- CleanDim technology maintains consistent light quality and extends LED service life.
What applications is this best for?
It’s commonly used for millwork, reveals, toe-kicks, coves, and tight architectural details needing clean linear light.
What CCT levels are available?
2000k, 2400k, 2700k, 3000k, 3500k, and 4000k
It’s commonly used for millwork, reveals, toe-kicks, coves, and tight architectural details needing clean linear light.
What CCT levels are available?
2000k, 2400k, 2700k, 3000k, 3500k, and 4000k
Inspiration
Nano Series Collection

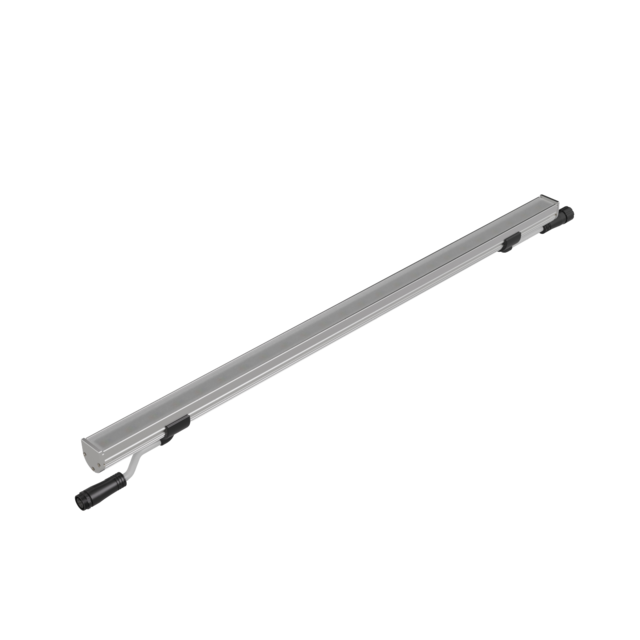

NanoMix-EXT
Triple Diode DMX Controlled Line Voltage Small Profile Linear LED Fixture
View Entire Collection
Lighting Collection

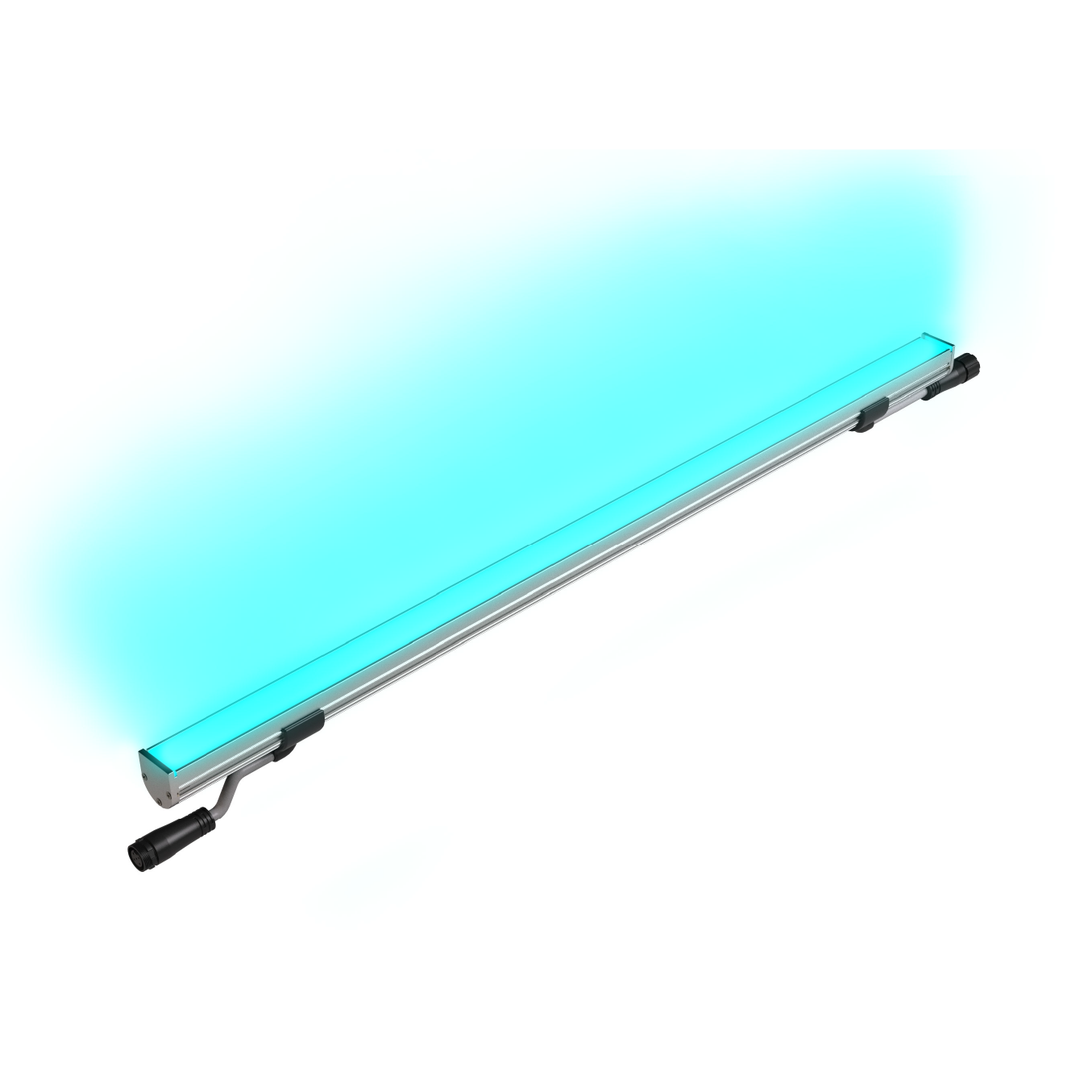

NanoMix-INT
