HPNLS-TW
HPNLS-4000k.pngHPNLS-TW

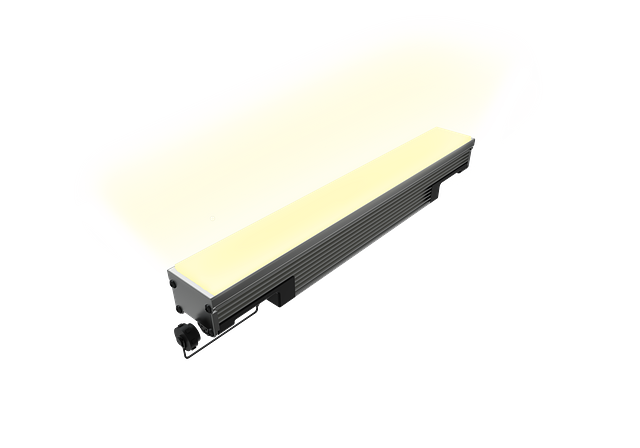

Small Profile Tuneable White Linear LED Fixture
The Boca Lighting and Controls HPNLS-TW is a small profile tuneable white linear fixture well suited for many lighting situations where both space and locating transformers are concerns. This patent-pending line voltage fixture eliminates the need for secondary transformers, making installation contractor friendly. Boca’s CleanDim® technology ensures even dimming from 0-100%. The HPNLS-TW can be fabricated with a range of optics and color temperature choices, affording a multitude of distribution and effect options.
Resources
- Specifier / Lighting Designer
- Precise 10° optics deliver exceptional beam control for dramatic wall grazing effects.
- Broad tunable white range from 2000K to 5000K offers ultimate design flexibility.
- High 90 CRI ensures accurate color representation across the entire white spectrum.
- Architect
- Small profile footprint allows for seamless integration into narrow architectural coves.
- Minimalist design remains concealed while providing powerful, high-performance illumination.
- High-quality construction complements sophisticated architectural materials and finishes perfectly.
- Engineer
- Direct line voltage input simplifies electrical design and reduces installation complexity.
- Standard DMX protocol ensures reliable, flicker-free dimming and color temperature control.
- JA8 and cULus listings verify compliance with rigorous energy and safety codes.
- Installer / Contractor
- Integrated line voltage eliminates external drivers, simplifying wiring and reducing labor.
- IP69K rating ensures maximum durability for worry-free installation in demanding wet locations.
- Versatile mounting and compact size enable fast installation in restricted millwork areas.
- Facility Manager / Owner
- 14W/ft efficiency provides high output while maintaining low long-term utility costs.
- Vandal-resistant and IP69K-rated housing ensures longevity with minimal maintenance requirements.
- Made in the USA construction supports domestic procurement and reliable factory support.
Beam Angle
- 10x10
- 10x30
- 10x60
- 30x30
- 30x60
- 60x60
- 100
CCT
- 2000K
- 2200K
- 2400K
- 2700K
- 3000K
- 4000K
- 5000K
CRI
- 90
Color / Finish
- Black
- Gray
- White
Dimensions
- W: 1.80 In. H: 1.68 In.
Dimming Protocol
- DMX
Ratings & Compliance
- ANSI C136.31
- Build America Buy America (BABA)
- IP50
- IP67
- IP69K
- JA8
- Made in America
- RoHS
- Vandal Resistant
Voltage
- 230-277 V
- 90-120 V
Watts / Linear Ft.
- 14
Additional Details
- Specifier / Lighting Designer
- Precise 10° optics deliver exceptional beam control for dramatic wall grazing effects.
- Broad tunable white range from 2000K to 5000K offers ultimate design flexibility.
- High 90 CRI ensures accurate color representation across the entire white spectrum.
- Architect
- Small profile footprint allows for seamless integration into narrow architectural coves.
- Minimalist design remains concealed while providing powerful, high-performance illumination.
- High-quality construction complements sophisticated architectural materials and finishes perfectly.
- Engineer
- Direct line voltage input simplifies electrical design and reduces installation complexity.
- Standard DMX protocol ensures reliable, flicker-free dimming and color temperature control.
- JA8 and cULus listings verify compliance with rigorous energy and safety codes.
- Installer / Contractor
- Integrated line voltage eliminates external drivers, simplifying wiring and reducing labor.
- IP69K rating ensures maximum durability for worry-free installation in demanding wet locations.
- Versatile mounting and compact size enable fast installation in restricted millwork areas.
- Facility Manager / Owner
- 14W/ft efficiency provides high output while maintaining low long-term utility costs.
- Vandal-resistant and IP69K-rated housing ensures longevity with minimal maintenance requirements.
- Made in the USA construction supports domestic procurement and reliable factory support.
