Nano HD-QS
Boca__NANO HD QUICKSHIP_white.jpgNano HD-QS

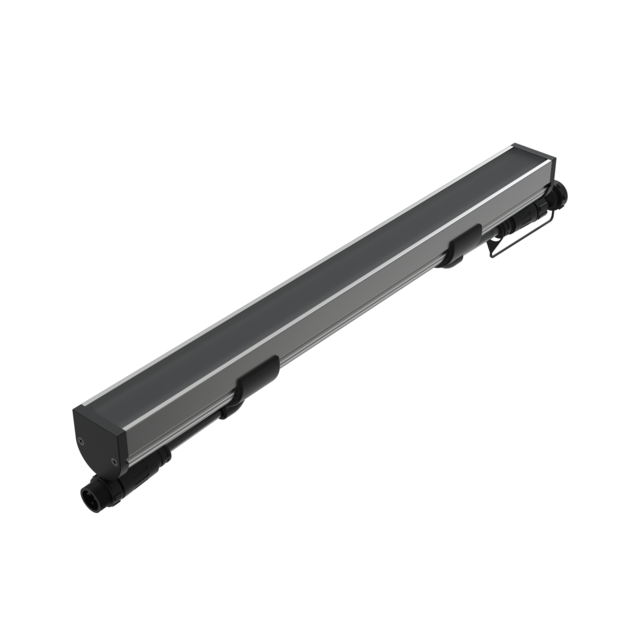

Heavy Duty, Micro Profile LED Task and Cove Fixture QuickShip
 The Nano HD is built with a robust aluminum housing allowing for higher output performance and use in even the most difficult indoor applications. It is a line voltage fixture perfect for Cove Lighting, Wall grazing or Task Lighting in areas where space, output and energy consumption are a factor. The Nano HD utilizes the Boca Flex Connect system for ease of installation. Boca’s CleanDim® technology ensures even dimming from 0-100%. The Nano HD can be fabricated with a range of color temperature choices, optics and accessories affording a multitude of options.
Key Features
- Line voltage fixture with CCT options
- Quick-ship availability
- CleanDim® technology
 The Nano HD is built with a robust aluminum housing allowing for higher output performance and use in even the most difficult indoor applications. It is a line voltage fixture perfect for Cove Lighting, Wall grazing or Task Lighting in areas where space, output and energy consumption are a factor. The Nano HD utilizes the Boca Flex Connect system for ease of installation. Boca’s CleanDim® technology ensures even dimming from 0-100%. The Nano HD can be fabricated with a range of color temperature choices, optics and accessories affording a multitude of options.
Key Features
- Line voltage fixture with CCT options
- Quick-ship availability
- CleanDim® technology
The Nano HD-QS is ideal for these applications:
- Cove
- Up and back lighting
- Wall Washing/Grazing
- Under-cabinet
- Task
Resources
The Nano HD-QS is ideal for these applications:
- Cove
- Up and back lighting
- Wall Washing/Grazing
- Under-cabinet
- Task
How bright is Nano HD compared to standard?
Nano HD generally provides higher output or denser light than standard nano versions; the exact lumens depend on the configured package.
What are the best applications for this fixture?
The Nano HD-QS is perfect for cove lighting, wall grazing or task ighting.
Nano HD generally provides higher output or denser light than standard nano versions; the exact lumens depend on the configured package.
What are the best applications for this fixture?
The Nano HD-QS is perfect for cove lighting, wall grazing or task ighting.
- Specifier / Lighting Designer
- High 95 CRI delivers exceptional color accuracy for premium indoor environments.
- Precise 15x40 and 120-degree beam options provide superior light distribution control.
- Extensive CCT range from 2000K to 4000K supports diverse aesthetic requirements.
- Architect
- Micro-profile design enables effortless concealment within narrow architectural coves.
- Durable aluminum housing ensures high-quality material integrity and sleek integration.
- Compact form factor seamlessly integrates into sophisticated millwork and task areas.Â
- Engineer
- Integrated line voltage design simplifies electrical layouts by removing remote drivers.
- Supports multiple dimming protocols including 0-10V, DALI, DMX, and Phase.
- CleanDim technology provides reliable, flicker-free dimming across the entire 0-100% range.
- Installer / Contractor
- Boca Flex Connect system streamlines the wiring process for faster installation.
- Hinge or fixed mounting options offer versatility for various site conditions.
- IP50 rating and line voltage input reduce complexity for indoor lighting setups.
- Facility Manager / Owner
- High-efficiency 6W or 10W operation significantly lowers monthly energy expenses.
- Robust five-year warranty provides long-term reliability and reduced maintenance risk.
- QuickShip availability ensures fast replacement and minimal disruption to facility operations.
Beam Angle
- 15x40
- 120
CCT
- 2000K
- 2400K
- 2700K
- 3000K
- 3500K
- 4000K
CRI
- 95
Color / Finish
- Clear Anodized Aluminum
- Custom
Dimensions
- L: 42 In.
- L: 48 In.
- L: 72 In.
- L: 54 In.
- L: 12 In. W: 1.01 In. H: 1.09 In.
- L: 60 In.
- L: 18 In.
- L: 30 In.
- L: 24 In.
- L: 66 In.
- L: 36 In.
Dimming Protocol
- 0-10 V
- DALI
- DMX
- Forward Phase
- Reverse Phase
Dimming Range
- 0-100%
Lamp Source
- LED
Listings
- cULus
Lumens
- 718
- 850
- 936
- 980
- 1030
- 1060
Materials
- Aluminum
Mounting
- Fixed
- Hinge
Ratings & Compliance
- Build America Buy America (BABA)
- Buy American Act (BAA)
- IP50
- JA8
- Made in America
- RoHS
- Title 24
Special Programs
- Quick Ship
Static LED Color
- White
Voltage
- 230-277 V
- 90-120 V
Warranty
- 5 yr
Watts
- 6
- 10
Additional Details
- Specifier / Lighting Designer
- High 95 CRI delivers exceptional color accuracy for premium indoor environments.
- Precise 15x40 and 120-degree beam options provide superior light distribution control.
- Extensive CCT range from 2000K to 4000K supports diverse aesthetic requirements.
- Architect
- Micro-profile design enables effortless concealment within narrow architectural coves.
- Durable aluminum housing ensures high-quality material integrity and sleek integration.
- Compact form factor seamlessly integrates into sophisticated millwork and task areas.Â
- Engineer
- Integrated line voltage design simplifies electrical layouts by removing remote drivers.
- Supports multiple dimming protocols including 0-10V, DALI, DMX, and Phase.
- CleanDim technology provides reliable, flicker-free dimming across the entire 0-100% range.
- Installer / Contractor
- Boca Flex Connect system streamlines the wiring process for faster installation.
- Hinge or fixed mounting options offer versatility for various site conditions.
- IP50 rating and line voltage input reduce complexity for indoor lighting setups.
- Facility Manager / Owner
- High-efficiency 6W or 10W operation significantly lowers monthly energy expenses.
- Robust five-year warranty provides long-term reliability and reduced maintenance risk.
- QuickShip availability ensures fast replacement and minimal disruption to facility operations.
How bright is Nano HD compared to standard?
Nano HD generally provides higher output or denser light than standard nano versions; the exact lumens depend on the configured package.
What are the best applications for this fixture?
The Nano HD-QS is perfect for cove lighting, wall grazing or task ighting.
Nano HD generally provides higher output or denser light than standard nano versions; the exact lumens depend on the configured package.
What are the best applications for this fixture?
The Nano HD-QS is perfect for cove lighting, wall grazing or task ighting.
